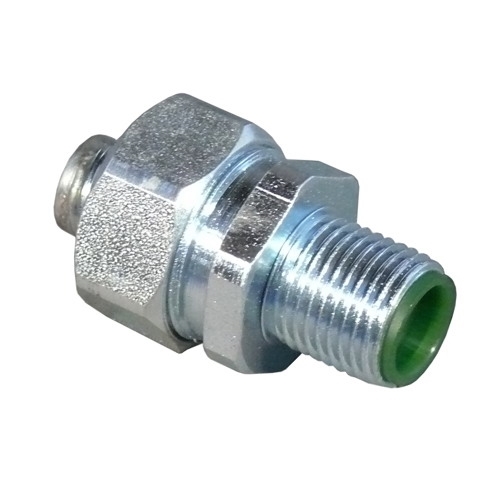

Appleton Electric ISO Metric Thread Straight Liquidtight Connector, Size: 1/2 IN, Connection: M20 Threaded X Compression, Material: Steel, Insulation: Green Nylon Insul...
Appleton Electric #:ISO5020-STB
SKU: APPLISO5020-STB
UPC: 781381620444
SKU: APPLISO5020-STB
UPC: 781381620444
Your Price: $10.84 / EA
Appleton Electric ISO Metric Thread Straight Liquidtight Connector, Size: 1/2 IN, Connection: M20 Threaded X Compression, Material: Steel, Insulation: Green Nylon Insul...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/2 IN LFMC CONN W/ISO THD
Specification Sheet
Warranty
Detailed Description
ISO Metric Thread Straight Liquidtight Connector, Size: 1/2 IN, Connection: M20 Threaded X Compression, Material: Steel, Insulation: Green Nylon Insulator, Dimensions: 1.44 IN Length X 1-1/4 IN Height, Thread Length: 0.63 IN, Standard: UL 514B, E14814, CSA C22.2 No. 18.3, 65178, British Standard BS3643 Part 2, For Liquidtight Flexible Metal Conduit
| Size: | 1/2 in |
| Material: | Steel |
| Application: | For Liquidtight Flexible Metal Conduit |
| Special Features: | Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Insulated throat protects aga |
| Standard: | UL 514B, E14814, CSA C22.2 No. 18.3, 65178, British Standard BS3643 Part 2 |
| Type: | ISO Metric Thread Straight Liquidtight Connector |
| Insulation: | Green Nylon Insulator |
| Connection: | M20 Threaded X Compression |
