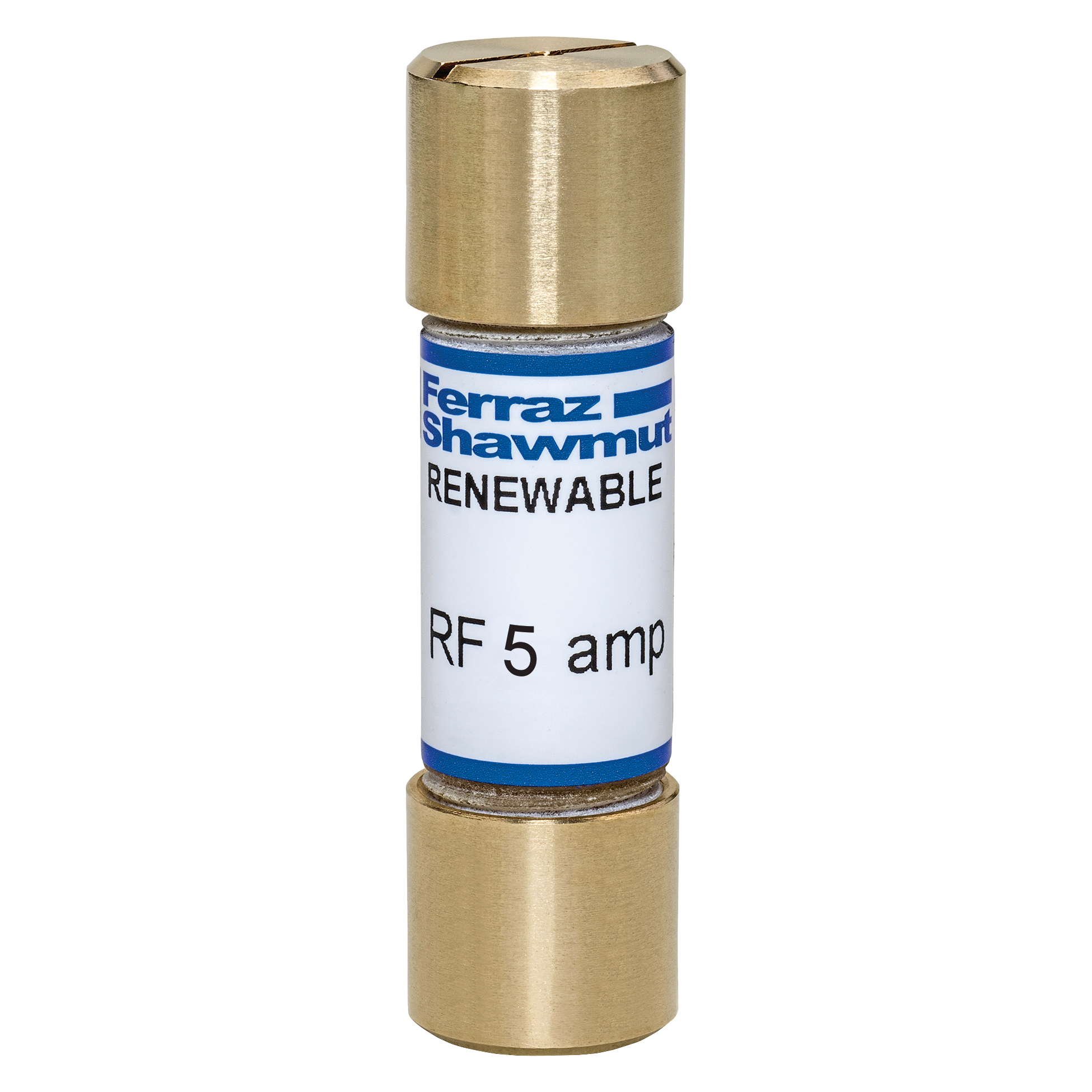

Mersen Fuse RF - Class H - Fast-Acting 250VAC 5A Ferrule
Mersen #:RF5
SKU: MERSRF5
UPC: 068938720049
SKU: MERSRF5
UPC: 068938720049
Your Price: $47.46 / EA
Mersen Fuse RF - Class H - Fast-Acting 250VAC 5A Ferrule
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Fuse RF - Class H - Fast-Acting 250VAC 5
Specification Sheet
Detailed Description
Fuse RF - Class H - Fast-Acting 250VAC 5A Ferrule
| AC Voltage Rating: | 250 V |
| Body Material: | FWGE |
| Connection Material: | Brass |
| Application: | General purpose loads where short circuits are 10,000 amperes or less |
| Class: | Class H |
| Connection: | Ferrule |
| Interrupt Rating: | 10 kA |
| Mounting: | Clip |
| Size: | 2 x 0.56 in |
| Special Features: | Knurled bushings for ease of disassembly Rugged construction for maximum service life Precision die-cut renewal links renew quickly and give repeatable performance |
| Standard: | UL listed to standard 248-7 File E2137 CSA certified to standard C22.2 no. 248.7 |
| Type: | Renewable Fuses |
| Voltage Rating: | 250 VAC |
| Amperage Rating: | 5 A |
