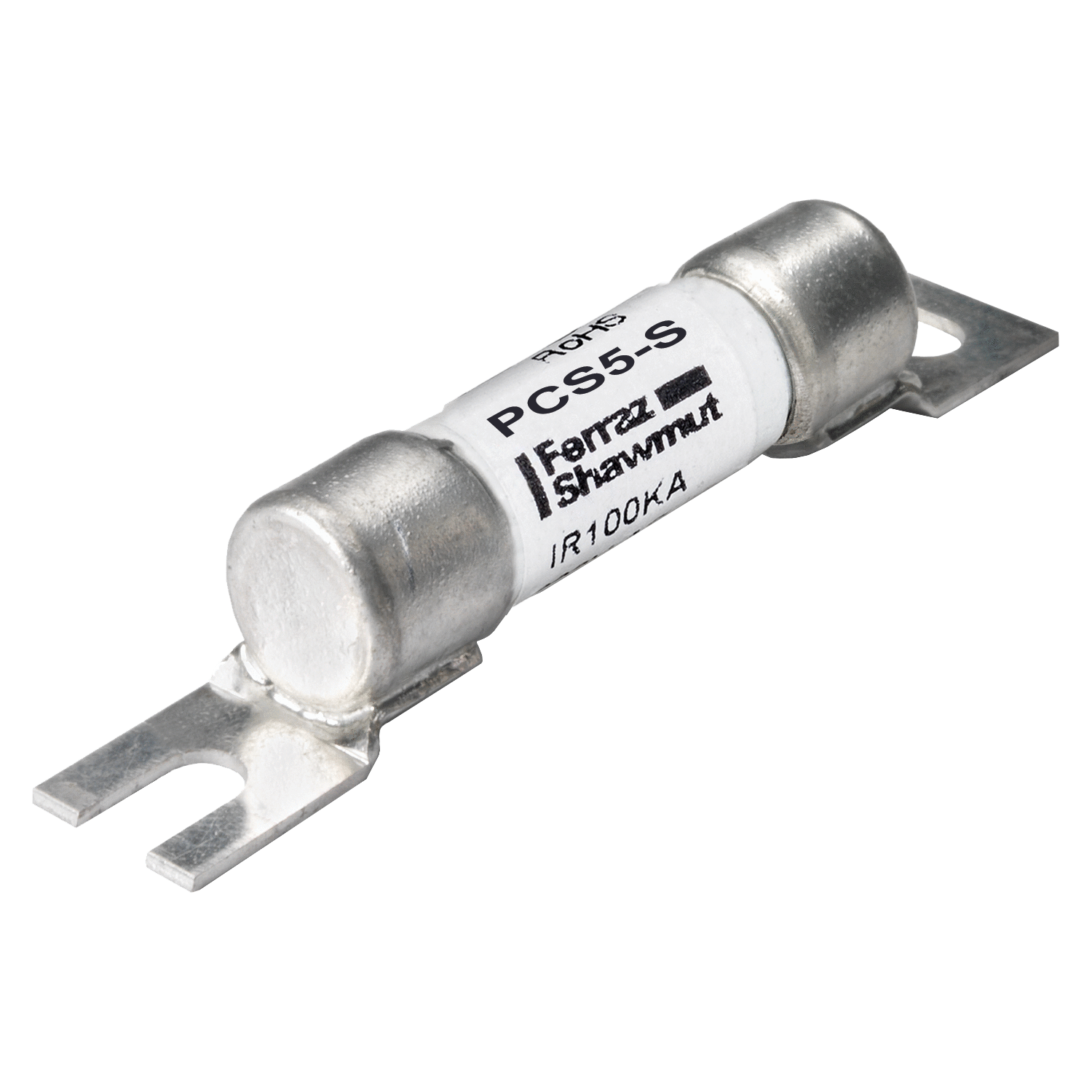

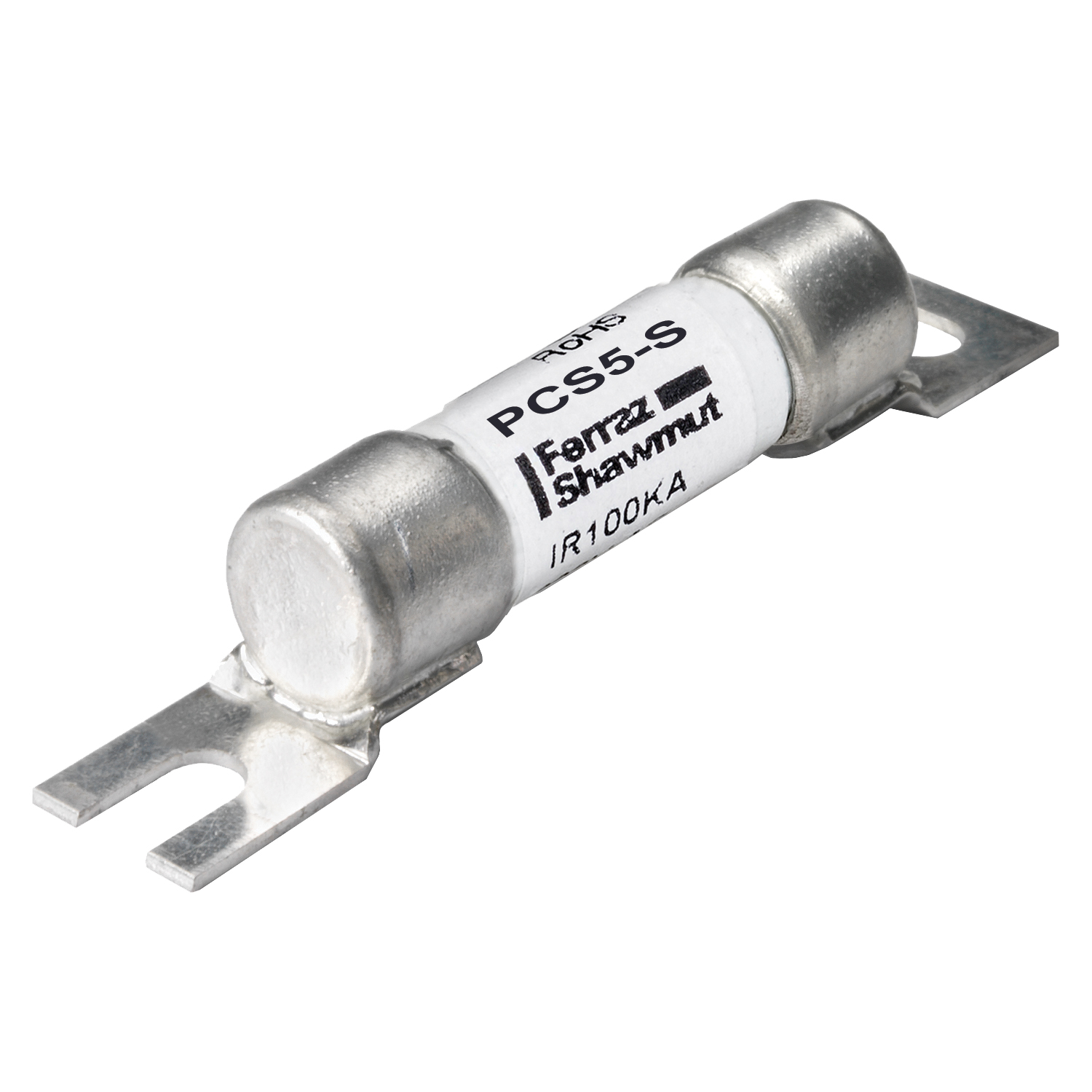

Mersen Fuse PCS - Midget - Fast-Acting 600VAC 600VDC 5A Surface Screw Mount
Mersen #:PCS5-S
SKU: MERSPCS5-S
UPC: 782001141721
SKU: MERSPCS5-S
UPC: 782001141721
Your Price: $60.76 / EA
Mersen Fuse PCS - Midget - Fast-Acting 600VAC 600VDC 5A Surface Screw Mount
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product Fuse PCS - Midget - Fast-Acting 600VAC 6
Specification Sheet
Detailed Description
Fuse PCS - Midget - Fast-Acting 600VAC 600VDC 5A Surface Screw Mount
| Body Material: | GMG |
| AC Voltage Rating: | 600 V |
| Connection Material: | Tin-Plated Copper |
| DC Voltage Rating: | 600 V |
| Class: | Midget |
| Amperage Rating: | 5 A |
| Application: | Protection of semiconductors, circuit breakers, critical components |
| Interrupt Rating: | 200 kA |
| Mounting: | PC Mount |
| Special Features: | Extremely fast-acting PC board mount Three mounting styles |
| Standard: | UL Recognized Components File E60314 |
| Type: | Midget Fuses |
| Voltage Rating: | 600 VAC |
| Connection: | Surface Screw Mount |
| Size: | 2.38 x 0.41 in |
