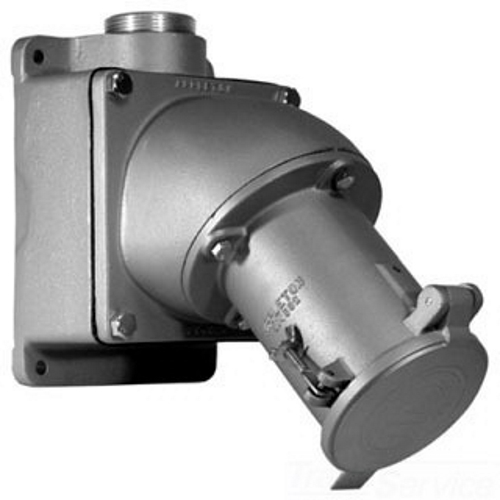

Appleton Electric Appleton Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage ...
Appleton Electric #:ADJA20034-250
SKU: APPLADJA20034-250
UPC: 781381612623
SKU: APPLADJA20034-250
UPC: 781381612623
Your Price: $1,944.43 / EA
Appleton Electric Appleton Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage ...
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product FC 200A RECEPT & UNILET ASSY
Specification Sheet
Warranty
Detailed Description
Appleton Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, Mounting: Surface Mount With 2-1/2 IN Hub, Connection: Pressure Wire Terminal, Temperature Rating: -40 To 107 DEG C, Motor Horsepower: 50 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 8 IN Width X 13.50 IN Height X 14-1/4 IN Depth, Standard: UL 1682, UL 1686, UL 50E, UL Listed: E145916, E145917, CSA Standard: C22.2 No. 182.1, CSA Certified: 065179, NEMA FB11, For AP20034E Plug
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Material: | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| Connection: | Pressure Wire Terminal |
| Standard: | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Voltage Rating: | 600 VAC At 50 - 400 HZ, 250 VDC |
| Wire Size: | 2/0 AWG - 250 MCM |
| Amperage Rating: | 200 AMP |
| NEMA Rating: | NEMA 3, 3R, 4, 4X |
| Temperature Rating: | -40 To 107 DEG C |
| Mounting: | Surface Mount With 2-1/2 IN Hub |
| Special Features: | Grounding style: Shell and extra pole; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and |
| Type: | Grounding Style 2 Receptacle With AJA Mounting Box |
| Application: | For AP20034E Plug |
