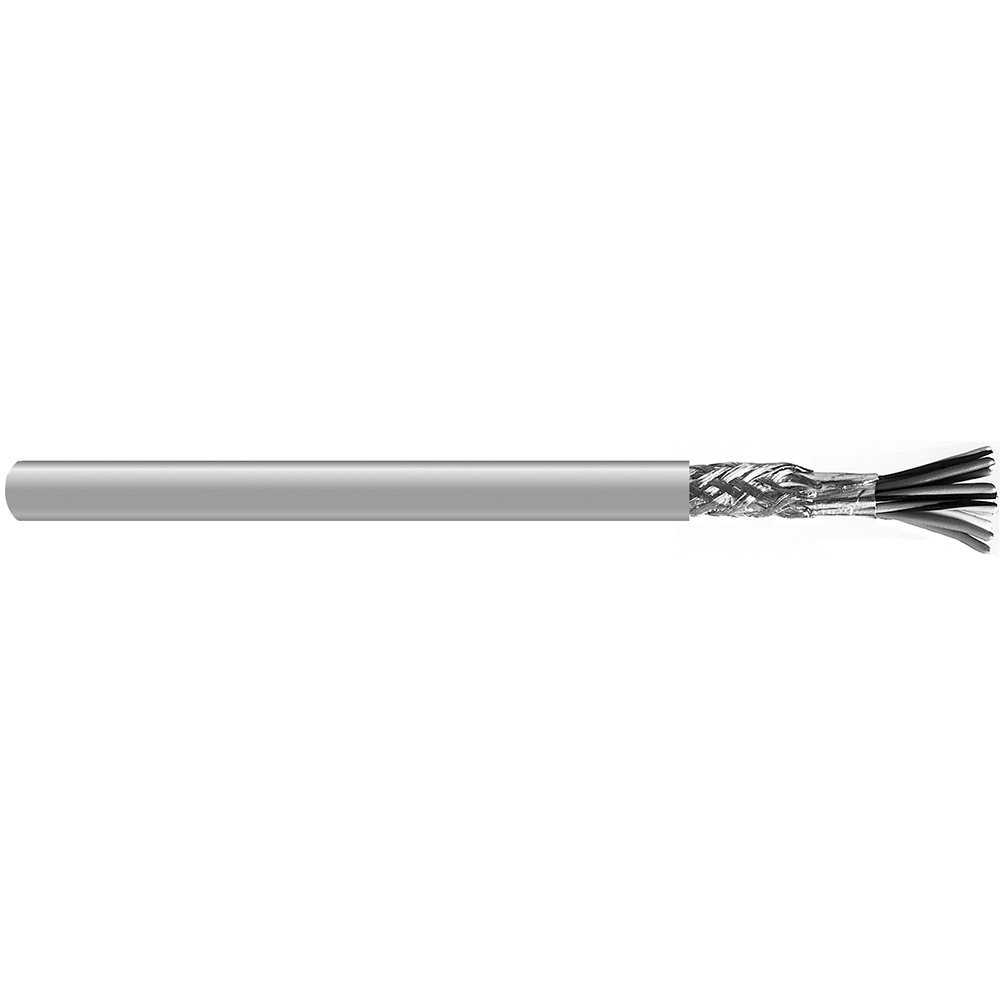

Prysmian Group 9C/24 7/32T FL/BRD LO-CAP CM
Prysmian Group #:C0686A.41.10
SKU: PRYSC0686A.41.10
UPC: 079407711048
SKU: PRYSC0686A.41.10
UPC: 079407711048
Your Price: $0.00
Prysmian Group 9C/24 7/32T FL/BRD LO-CAP CM
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 9C/24 7/32T FL/BRD LO-CAP CM
Specification Sheet
Detailed Description
Lo-Cap Multi-Conductor Foil/Braid Shield UL 2919, NEC Type CL2 or CM (UL) c(UL) CMH, CSA CMH, 9C/24 7/32T FL/BRD LO-CAP CM, 1000' Reel
| Shield: | Flexfoil |
| Temperature Rating: | (-20C to +80C) |
| Jacket Material: | PVC |
| Braid: | tinned copper |
| Color: | Gray |
| Conductor Material: | fully annealed stranded tinned copper |
| NEMA Color: | Gray |
| Special Features: | Braid shield provides good flexibility; superior shielding where noise rejection is critical; assists system designers in meeting FCC Docket 20780 demands |
| Conductor Size: | 24 AWG |
| Application: | High speed computers; industrial equipment control circuits; suitable for EIA RS-232 applications; suggested voltage rating: 30 volts |
| Insulation Material: | Premium grade foamed Lo-Cap color coded polypropylene |
| Standard: | NEC Article 800 Type CMR; UL Style 2919; CSA CMG; RoHS Compliant Directive 2002/95/EC; Deisgned to meet UL 70,000 BTU Vertical Flame Test; Passes CSA CMG Flame Test |
| Type: | Computer Cable |
| Number Of Conductors: | 9 |
| Outside Diameter: | 0.293 in |
