General Cable 4P/28 7/36TC FL/BRD SH CL2
General Cable #:C0806A.18.10
SKU: PRYSC0806A.18.10
UPC: 079407727773
SKU: PRYSC0806A.18.10
UPC: 079407727773

Your Price: $0.00
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 4P/28 7/36TC FL/BRD SH CL2
Specification Sheet

Detailed Description

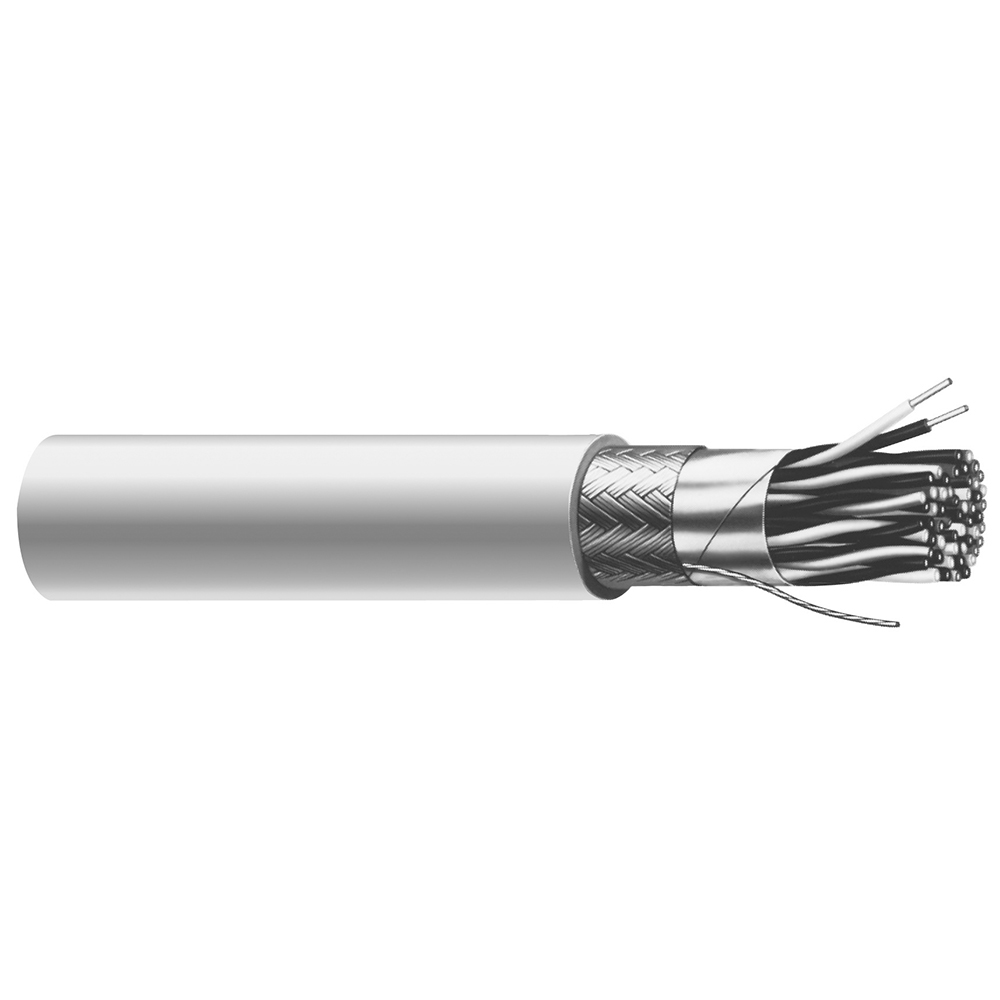

Lo-Cap, Multi-Paired, Foil/Braid Shield UL 2960, NEC Type CL2, 4P/28 7/36TC FL/BRD SH CL2
Shield: | Flexfoil |
Jacket Material: | PVC |
Braid: | tinned copper |
Color: | Gray |
Conductor Material: | fully annealed stranded tinned copper |
NEMA Color: | Gray |
Special Features: | Braid shield provides good flexibility; superior shielding where noise rejection is critical; assists system designers in meeting FCC Docket 20780 demands |
Number Of Conductors: | 4 |
Conductor Size: | 28 AWG |
Insulation Material: | Premium-grade, color-coded polyethylene |
Temperature Rating: | (-20C to +75C) |
Strands: | 7/36 |
Application: | Computers; industrial equipment; data transmission; control circuits; low capicitance requirements; suitable for EIA RS-232 applications; suitable for EIA RS-422 applications; suggested voltage rating: 30 volts |
Standard: | NEC Article 725 Type CL2; UL Style 2960; RoHS Compliant Directive 2002/95/EC; Deisgned to meet UL 70,000 BTU Vertical Flame Test |
Outside Diameter: | 0.211 in |
