Your Price: $26.22 / EA
Burndy 250-2 TO 2-6 CU FIG C
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 250-2 TO 2-6 CU FIG C
Specification Sheet
Detailed Description

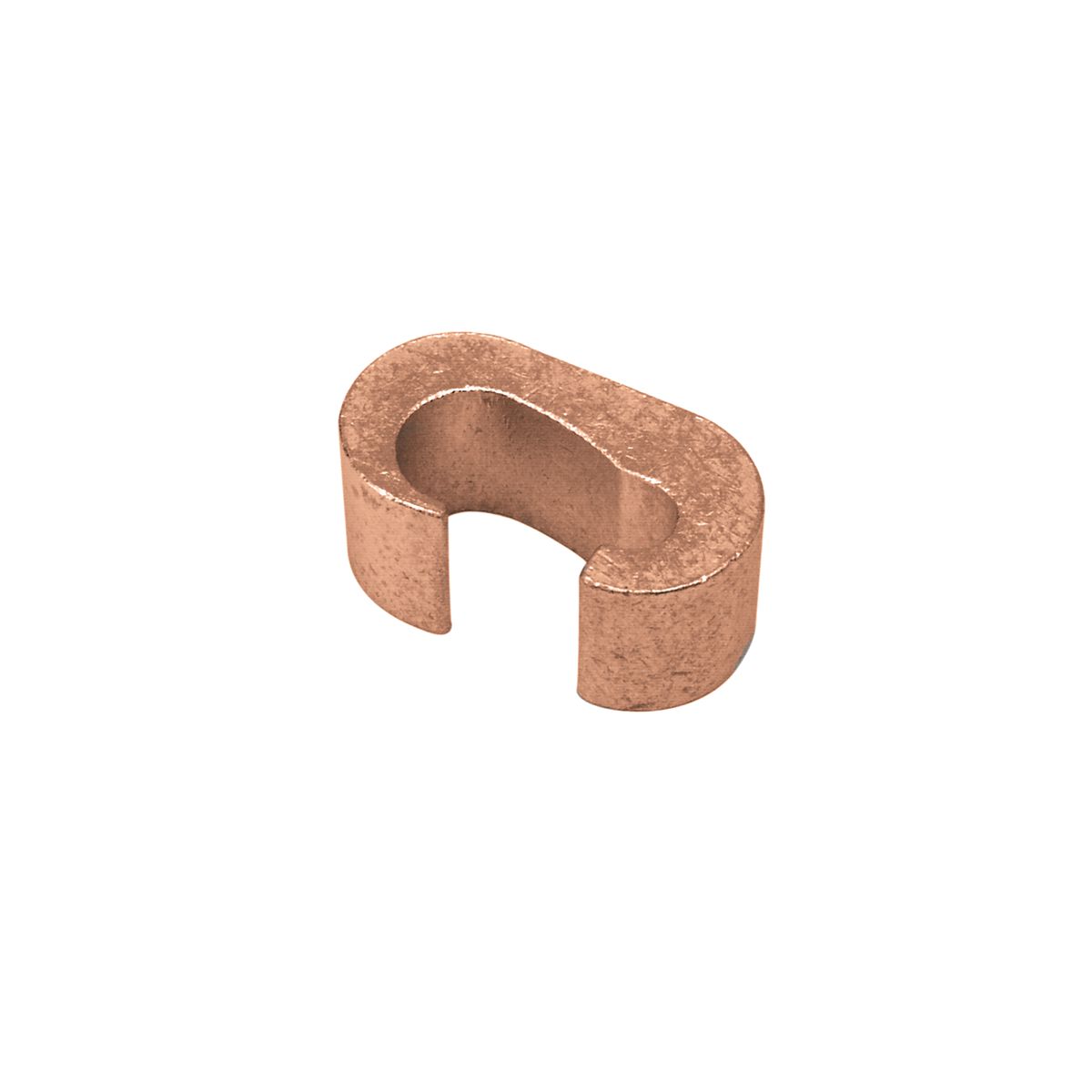

Copper Compression C Tap, 250 kcmil- 2 AWG (Main), 2-6 AWG (Tap 1), 8-14 AWG (Tap 2), Tin Plated.
| Certification - cULus: | No |
| Dimension - Height inch: | 1.78 in |
| Dimension - L Length Overall mm: | 21 mm |
| Description - Long: | Copper Compression C Tap, 250 kcmil- 2 AWG (Main), 2-6 AWG (Tap 1), 8-14 AWG (Tap 2), Tin Plated. |
| Application: | Wire Tap |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Standard: | UL 486A-486B |
| Special Features: | Features: Wide Range Of Run/Tap Combinations Including Class B Code I And Locomotive Flexible Conductor Combinations, All (B/B, B/I, I/I) Combinations Are Recommended: Each Connector Accommodates Many Cable Combinations, Allowing Maximum Flexibility For T |
| Type: | YCHC Series |
| Conductor Size: | 250 KCMIL-2 AWG |
