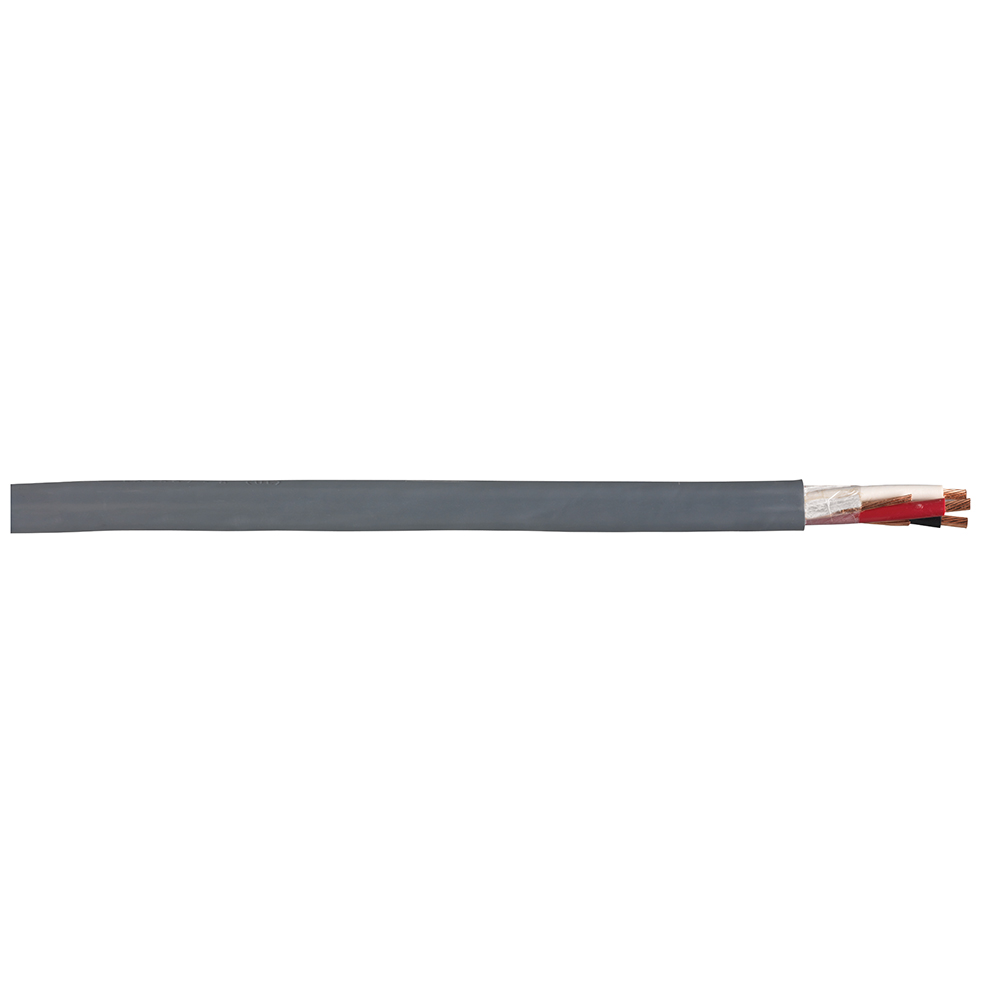

General Cable 10/3 BUS DROP 1000'RL-GRY
General Cable #:03710.41.10
SKU: PRYS03710.41.10
UPC: 079407113989
SKU: PRYS03710.41.10
UPC: 079407113989
Your Price: $0.00
General Cable 10/3 BUS DROP 1000'RL-GRY
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 10/3 BUS DROP 1000'RL-GRY
Specification Sheet
Detailed Description
Bus Drop Cable 60C 600V UL Listed, 10/3 BUS DROP 1000'Reel-GRAY
| _Jacket Color: | Gray |
| _Conductor: | 3 |
| _Conductor Stranding: | 19 |
| _Standards: | UL Listed RoHS Compliant |
| Insulation Material: | Premium-grade, color-coded PVC |
| Jacket Material: | PVC |
| Temperature Rating: | 60C |
| Voltage Rating: | 600 |
| Conductor Material: | annealed stranded bare copper |
| Application: | As branches from BSWYs per NEC Connection of stationary equipment to facilitate relocation of equipment |
| Special Features: | Used in dry locations One UNINSUL GND CNDTR per interstice (3 GND CNDTRs total) RST to oils, lubricants, water, acids, alkalies, ozone and abrasion |
| Conductor Size: | 10 |
| Amperage Rating: | 30 |
| Length: | 1000 FT |
| Weight: | 229.6 L |
