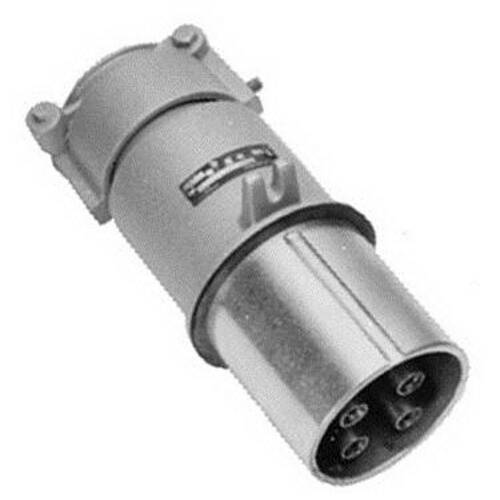

Appleton Electric AP20044E Powertite Grounding Style 1 Plug, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 ...
$1,313.80
Appleton Electric #: AP20044E
SKU: APPLAP20044E
UPC: 781381131292
SKU: APPLAP20044E
UPC: 781381131292
| Connection: | Pressure Wire Terminal |
| Number of Poles: | 4 |
| Phase: | 3 |
| Standard: | UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11 |
| Voltage Rating: | 600 VAC At 50 - 400 HZ, 250 VDC |
| Environmental Conditions: | Temperature Rating: -40 To 107 DEG C |
| Material: | Copperfree (4/10 Of 1 PCT Maximum) Aluminum |
| NEMA Rating: | NEMA 3, 3R, 4, 4X |
| Number of Wires: | 4 |
| Special Features: | Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other shi |
| Type: | Grounding Style 1 Plug |
| Wire Size: | 2/0 AWG - 250 MCM |
| Amperage Rating: | 200 AMP |
| Application: | For ADR20044 Receptacle And ARC20044E Connector Body |
