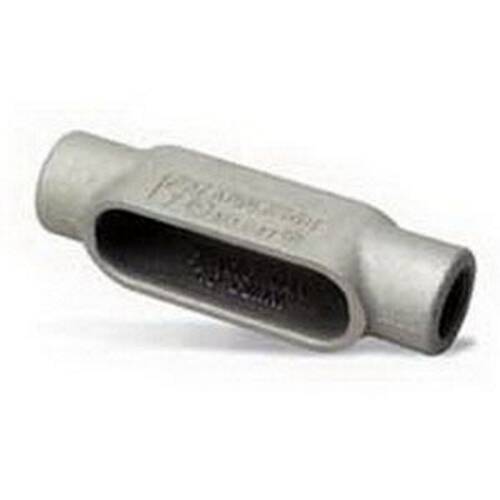

Appleton Electric C77SA FM7 UNILETS Type C Conduit Outlet Body, Hub Size: 2-1/2 IN, Form: 7, Length: 12 IN, Width: 4-1/4 IN, Height: 3.63 IN, Material: Cast Aluminum, Finish:...
$308.96
Appleton Electric #: C77SA
SKU: APPLC77SA
UPC: 781381600668
SKU: APPLC77SA
UPC: 781381600668
| Connection: | Tapered Female Threaded |
| Hub Size: | 2-1/2 |
| Height: | 3.63 in |
| Form: | 7 |
| Finish: | Epoxy Powder Coat |
| Standard: | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Material: | Cast Aluminum |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs |
| Application: | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Type: | Type C Conduit Outlet Body |
| Length: | 12 in |
| Width: | 4-1/4 IN |
