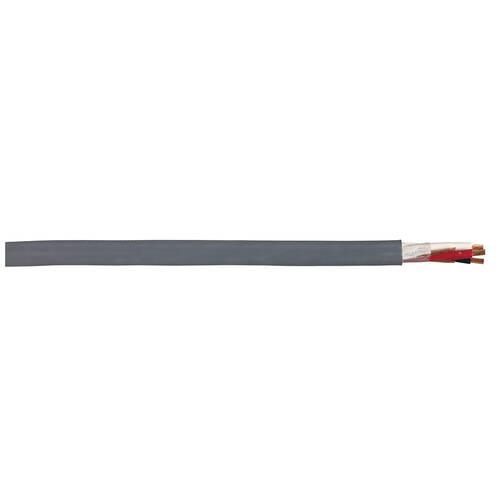

General Cable 03712.41.10 12/3 BUS DROP 1000' RL-GRY
$0.00
General Cable #: 03712.41.10
SKU: PRYS03712.41.10
UPC: 079407113996
SKU: PRYS03712.41.10
UPC: 079407113996
| _Jacket Color: | Gray |
| _Conductor: | 3 |
| _Conductor Stranding: | 19 |
| _Standards: | UL Listed RoHS Compliant |
| Insulation Material: | Premium-grade, color-coded PVC |
| Jacket Material: | PVC |
| Temperature Rating: | 60C |
| Voltage Rating: | 600 |
| Conductor Material: | annealed stranded bare copper |
| Conductor Size: | 12 |
| Application: | As branches from BSWYs per NEC Connection of stationary equipment to facilitate relocation of equipment |
| Special Features: | Used in dry locations One UNINSUL GND CNDTR per interstice (3 GND CNDTRs total) RST to oils, lubricants, water, acids, alkalies, ozone and abrasion |
| Amperage Rating: | 20 |
| Length: | 1000 FT |
| Weight: | 161 L |
