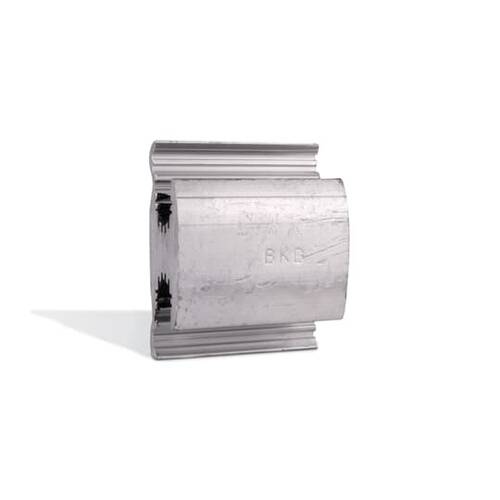

Thomas & Betts WR1010 Al Htype Comp Conn 1/0-4ascr 2/0-4
$1.71
Thomas & Betts #: WR1010
SKU: ABBIWR1010
UPC: 783786107452
SKU: ABBIWR1010
UPC: 783786107452
| Material: | Aluminum |
| Number Of Conductors: | 2 |
| Connection: | Compression |
| Insulation: | None |
| Application: | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors |
| Environmental Conditions: | All Seasons / Conditions |
| Mounting: | None |
| Special Features: | Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conduct |
| Standard: | RUS Accepted. Complies with ANSI C119.4 Specifications |
| Temperature Rating: | up to 90 C |
| Type: | H-Type Compression Tap Connector |
| Size: | Length 1-3/4 inch |
| Wire Size: | Main: 1/0 to #4 ACSR or 2/0 to #4 STR or #1 to #2 SOL AWG , Tap: 1/0 to #4 ACSR or 2/0 to #4 STR or #1 to #2 SOL AWG |
