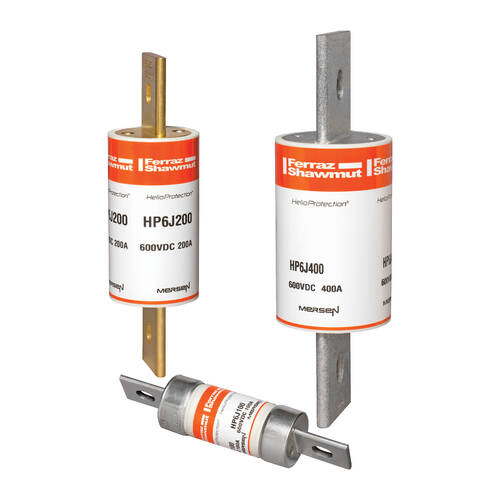

Mersen HP6J250EIB PV Fuse gPV 600VDC UL 250A With EI-B Indicator Blade Clip or Bolted
$798.66
Mersen #: HP6J250EIB
SKU: MERSHP6J250EIB
UPC: 782001449391
SKU: MERSHP6J250EIB
UPC: 782001449391
| Body Material: | GMG |
| Connection Material: | Silver-Plated Copper |
| DC Voltage Rating: | 600 V |
| Class: | Photovoltaic |
| Connection: | Blade |
| Interrupt Rating: | 10 kA |
| Amperage Rating: | 250 A |
| Mounting: | Clip or Bolted |
| Application: | Re-combiner (sub-combiner, array combiner, master combiner) applications Inverter DC input protection Battery charge controllers |
| Special Features: | Smallest footprint in the industry UL class J dimensions Low fault current interrupting capability Durable construction for enhanced system longevity Temperature cycle withstand capability Guaranteed operation at temperature extremes Industrys first UL Li |
| Standard: | UL Listed to Standard UL248 File E333668 CSA Component Certified C22.2 |
| Type: | Photovoltaic Fuses |
| Voltage Rating: | 600 VDC |
| Size: | 7.13 x 2.13 in |
| Type Of Indicators: | EI-B Indicator |
